evmode-180kW(4)

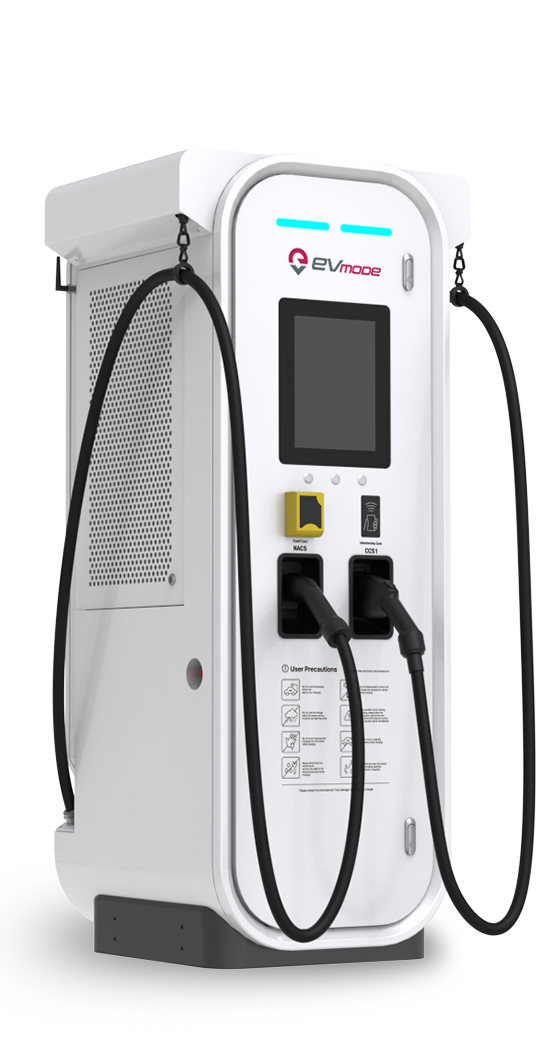

Level 3 EV Charger Stand-alone

Model : EVMDC120CV/EVMDC150CV/EVMDC180CV

Sleek meets speed. EVmode’s Level 3 DC Fast Charger
delivers 120kW / 150kW / 180kW to dual ports simultaneously.

Spec Sheet
  • Level 3 DC Fast Charger
  • Maximum output : 180kW
  • Amperage : 48A
  • Voltage : 260Vac – 530Vac, 3 Phase + N + PE
  • Management Software
  • Environmental Rating : NEMA 3R & IK10
  • Operating Environment : Fully Outdoor, Suitable for harsh environments
  • Operating Temperature : -31°F (-30°C) to 122°F (50°C)
  • Operating Humidity : 0% to 95%
  • Certifications : UL2202, CSA-C22.2 No.346, UL1998, UL2231-1, UL2231-2, UL991, UL50, UL50E, CSA-C22.2
    No.107.1; EMC : FCC Part15
  • Dual Port
  • Connector Type : CCS/CCS, CCS/NACS
  • Cable Length : 16 ft
  • OCPP Version : 1.6J
  • Display : 7“ TFT Touch Screen LCD
  • Payment Interface : App, RFID, Credit Card (Tap to Pay)
  • Capacitive Touch Buttons
  • 2.4 Ghz WiFi (802.11 b/g/n)
  • Dimension Weight (WxHxD) : 31.5″” x 78.7” x 29.5”
  • Weight : 520lbs
  • Cord Management : Retractable Cable (Optional)
  • ADA Compliant

  • Single Connector 11.5kW or 19.2kW

  • Intuitive App that allows users to check the history and status of the chargers in real time

  • J1772 or NACS Plug, 16.4 feet extended charging cable.

  • Convenient payment options through RFID, Credit Card
